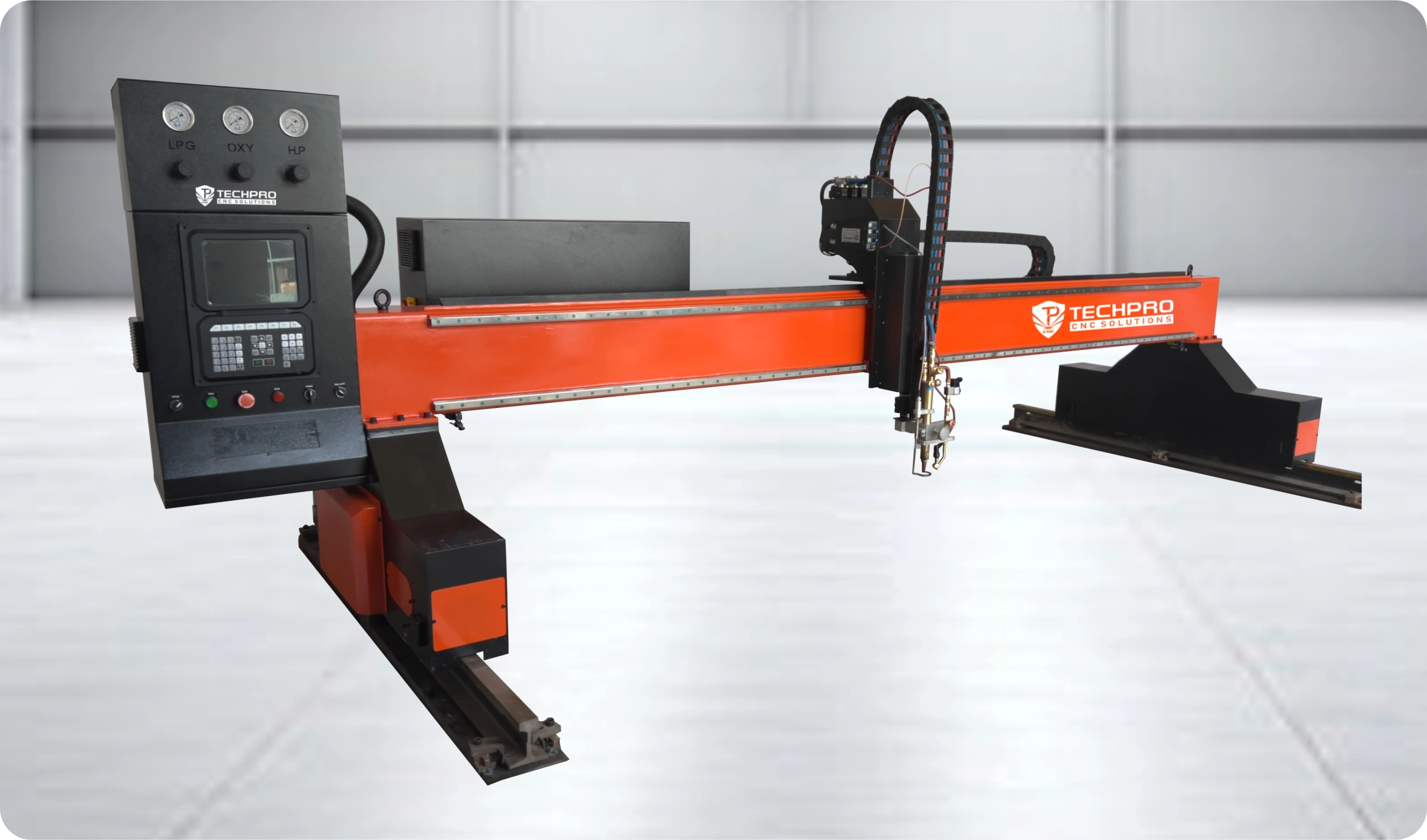

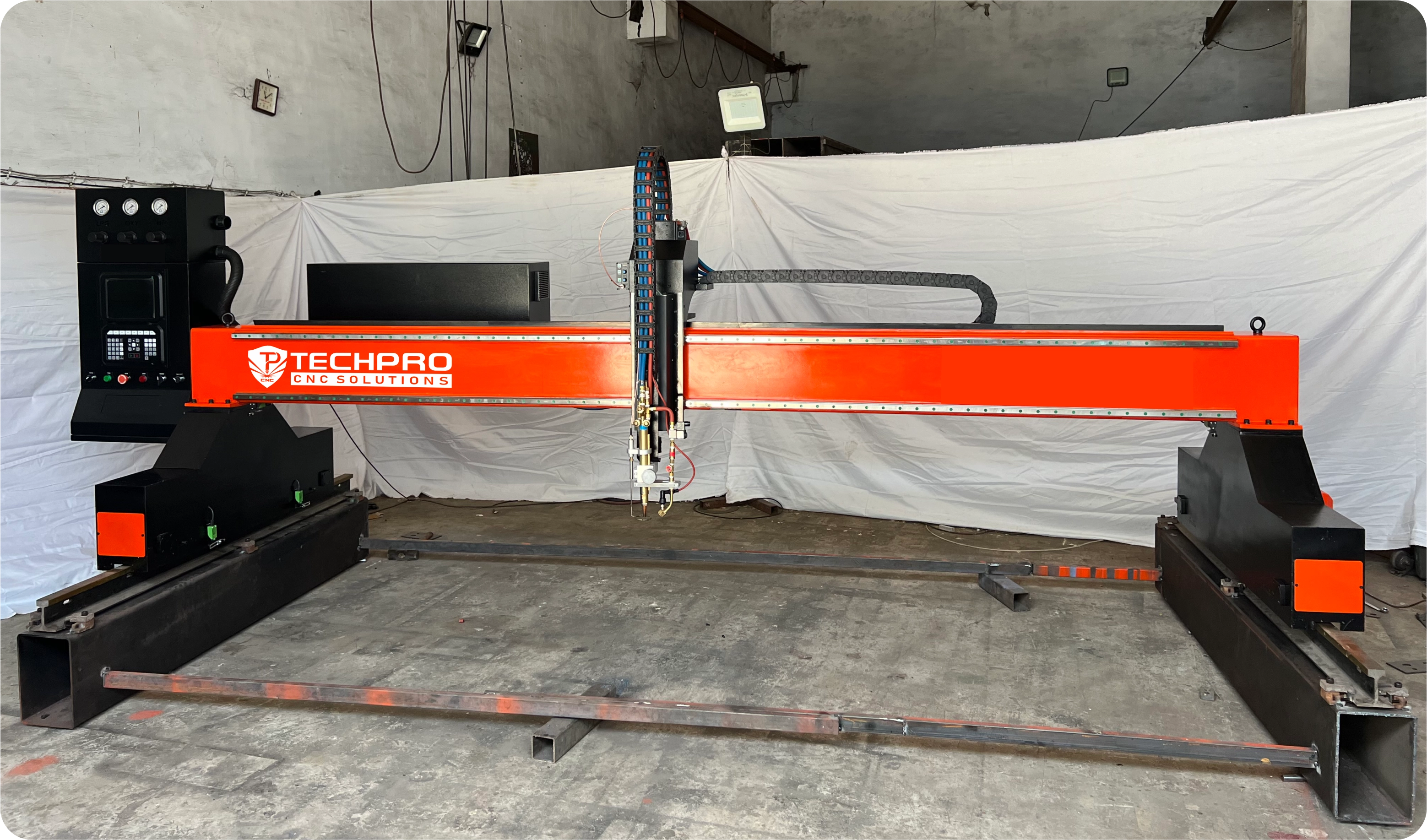

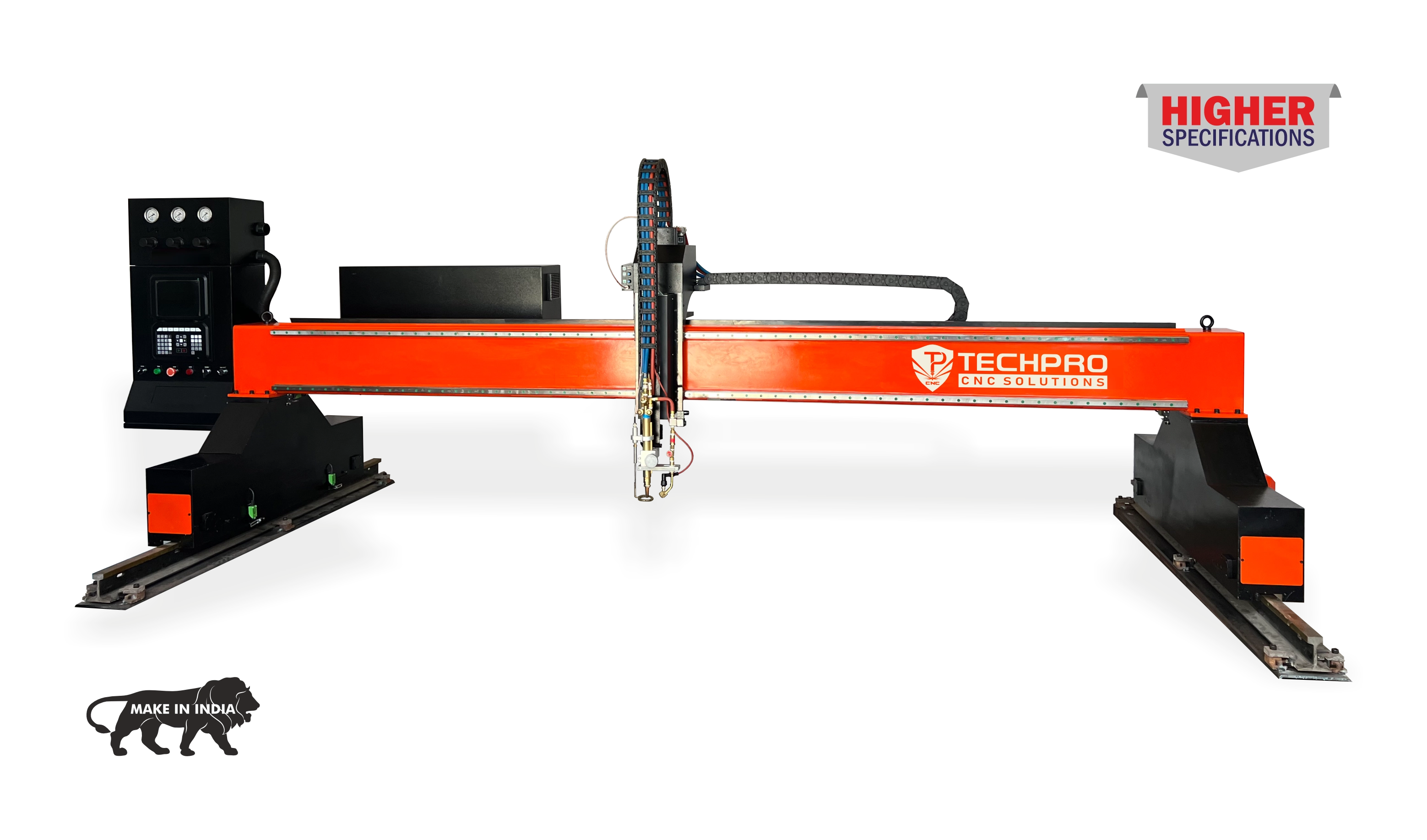

CNC Oxyfuel Cutting Machine
Gantry Type - Heavy Duty
Product Discription
The CNC Gantry Type Oxyfuel Cutting Machine is a high-performance, heavy-duty cutting system designed for precision cutting of thick mild steel plates. Built with a rugged gantry structure, this machine ensures stability, accuracy, and durability, making it ideal for large-scale industrial applications.
The CNC Gantry Type Oxyfuel Cutting Machine is a cost-effective solution for industries requiring precise, high-quality cutting of thick steel plates.
Product Details
Specifications
- Cutting Thickness: 6mm to 250mm
- Y Axis Motion Guide: Heavy Duty Rail
- Maximum Rapid Speed: 10,000 mm/Min
- Cutting Accuracy: ± 0.5mm
- Structure: Heavy Duty Gantry Type
- Compatible for Heavy Integrations
Machine Sizes (Working Area)
- Working: 2100 x 6500 mm (TP-2065 PL)
- Working: 2500 x 6500 mm (TP-2565 PL)
- Standard: 3100 x 6500 mm (TP-3065 PL)*
- Working: 3100 x 8500 mm (TP-3085 PL)
- Working: 3100 x 12500 mm (TP-3012 PL)
- As per requirements
Available Structures
- CNC Gantry Type*
- CNC Gantry Type Single Torch
- CNC Portable Gantry Type
- CNC Portable Type
Key Features:
- ✅ Heavy-Duty Gantry Structure: Ensures stability and precision in large-scale cutting.
- ✅ Advanced CNC Controller: Provides smooth and accurate motion control.
- ✅ Oxyfuel Cutting Technology: Ideal for thick mild steel cutting with clean and precise edges.
- ✅ Customizable Torch Configuration: Adjustable torch spacing for various cutting requirements.
- ✅ Automatic Height Control: Maintains optimal torch-to-material distance for superior cut quality.
- ✅ Multi-Torch Configuration (Optional): Supports multiple plasma and oxyfuel torches for higher productivity.
- ✅ Durable & Reliable: Built for long-term industrial use with minimal maintenance.
